On request

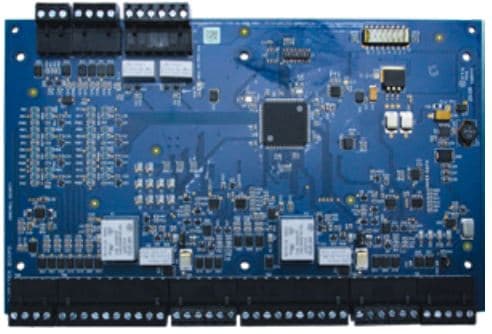

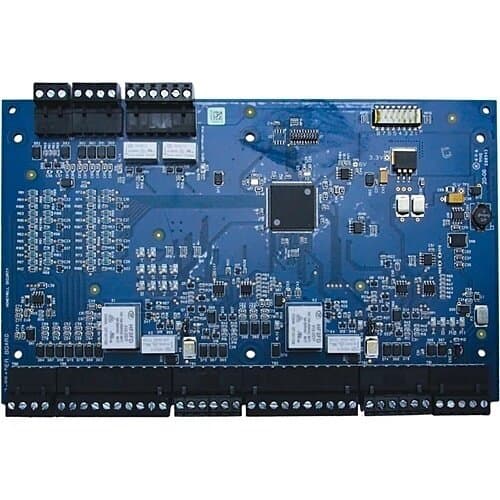

Expansion module for 2 Wiegand or 4 OSDP readers for PRO4200 series controller. 8 freely programmable inputs, tamper input, power failure indication input, 2 relay outputs 5A/28V, 4 relay outputs 2A/28V. Dimensions: 229×140×25.4 mm. Operating temperature range 0…+49 °C.
| Number of Inputs | 10 |
| Number of Outputs | 6 |
| Communication Interface | RS-485 |
| Number of Doors | 2 |
| Number of Readers | 4 |
| Dimensions | 229×140×25.4 mm |
| Temperature Range | 0…+49 °C |
| Note | Enclosure, PSU, and battery not included — purchased separately |
