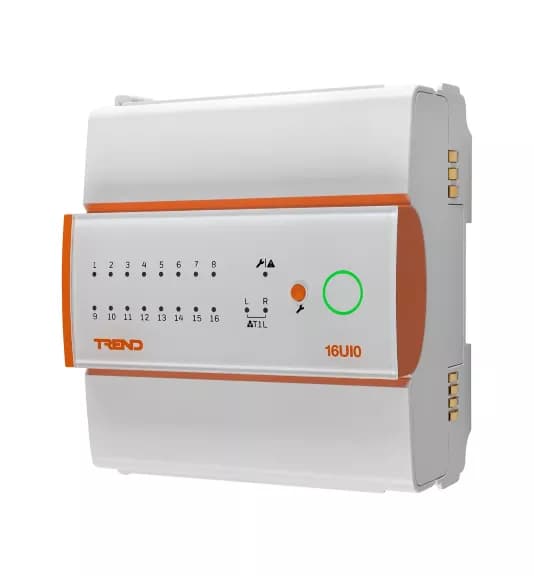

The IQ5-IO-16UIO module provides 16 universal input/output channels. It communicates with IQ5 controllers via the high-speed T1L bus. Designed for DIN rail mounting with IP20 protection when installed in a suitable enclosure.
| Type | 16 universal inputs/outputs |
| Power Supply | 24 Vac/dc |
| Communication | T1L bus |
| Mounting | DIN rail TS35 |
| Dimensions | 109.5 × 131 × 60 mm |
| Temperature Range | –40…+65.5 °C |
| Protection Class | IP20 |
QuADRO Technology engineers will handle the design, selection of compatible equipment and installation of systems based on Trend (Honeywell) equipment.
