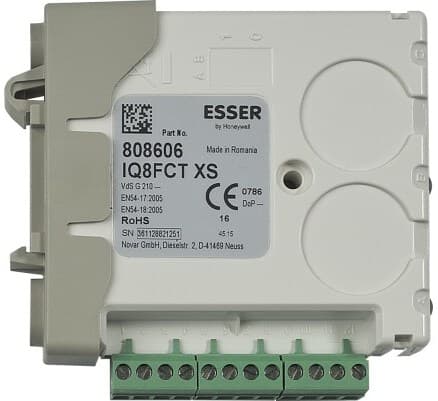

MPA IQ8FCT XS fire automation module — 24V fire valve control. Powered by 14–42V DC from addressable loop. Equipped with 1 relay output 30V DC / 1A. DIN rail or surface mounting. Operating temperature range –20…+70 °C. Protection class IP30.
| Purpose | 24V fire valve control |
| Power Supply | 14–42V DC from addressable loop |
| Inputs | 1 contact input |
| Outputs | 1 relay output 30V DC / 1A |
| Built-in Short Circuit Isolator | Yes |
| External Indicator Connection | Possible |
| Mounting | DIN rail or surface mount |
| Dimensions | 90×93×23 mm |
| Temperature Range | –20…+70 °C |
| Protection Class | IP30 |
| Max. Devices in Loop | 127 |
| Occupied Address | 1 |
