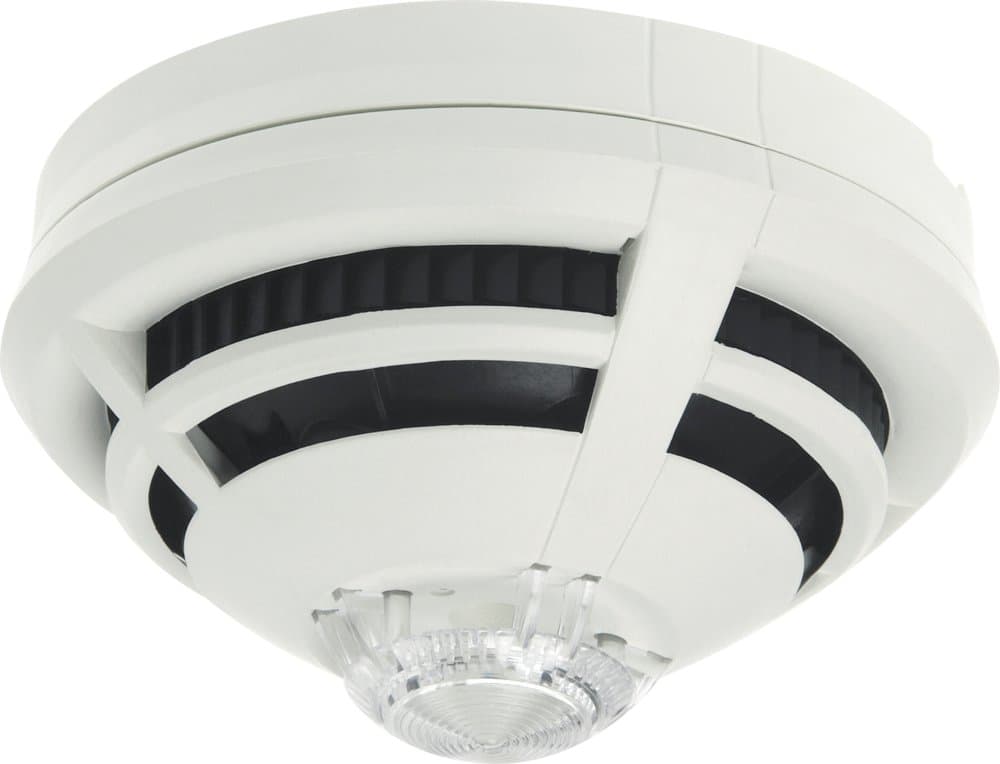

IQ8Quad O²T/So Detector.
| Type | IQ8Quad O²T/So Detector |
| Operating Voltage | 8 ... 42 V DC |
| Quiescent Current | 80 μA |
| Coverage Area | 110 m² |
| Max Installation Height | 12 m |
| Air Velocity | 0 m/s ... 25,4 m/s |
| Temperature Range | -20 °C ... 65 °C |
| Storage temperature | -25 °C ... 75 °C |
| Humidity | < 95 % |
| Protection Class | IP 40 with base, up to IP 43 with accessory |
| Material | ABS plastic |
| Color | white, similar to RAL 9010 |
| Weight | approx. 145 g |
| Standard | EN 54-7:2006/-5 B:2000/ -17:2005, CEA 4021 |
| Dimensions | Ø: 117 mm H: 59 mm |
QuADRO Technology engineers will handle the design, selection of compatible equipment and installation of systems based on Esser by Honeywell equipment.
