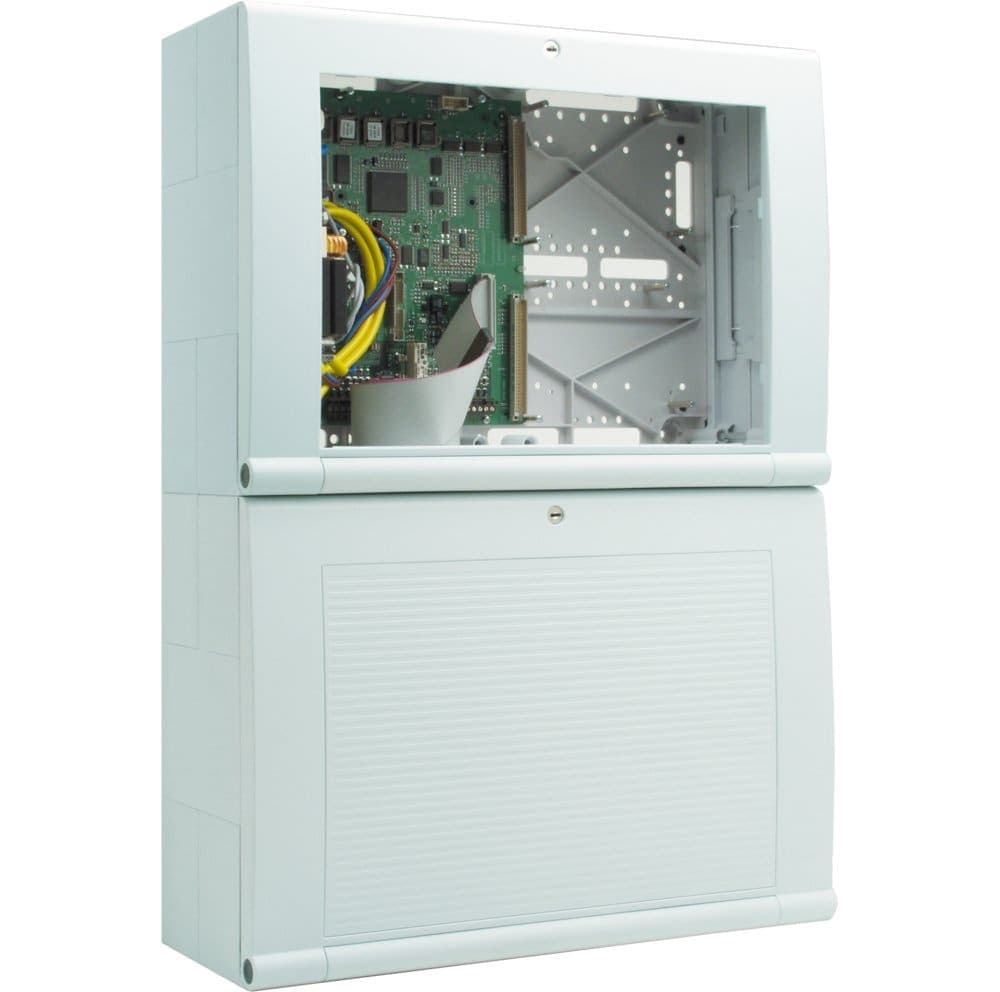

IQ8Control M Fire Alarm Panel. Capacity: max. 2 x 12 V/24 Ah.
| Type | IQ8Control M Fire Alarm Panel |
| Power Supply | 230 V AC |
| Current | 0,35 A (standard); 0.7 A (powered loop) |
| Output Voltage | 12 V DC |
| Quiescent Current | approx. 215 mA (basic configuration without operating unit) |
| Output | 2 A |
| Capacity | max. 2 x 12 V/24 Ah |
| Temperature Range | -5 °C ... 45 °C |
| Storage temperature | -10 °C ... 50 °C |
| Humidity | < 95 % |
| Protection Class | IP 30 |
| Enclosure | ABS, 10 % glass fiber reinforced, V - 0 |
| Color | gray, similar to Pantone 538 |
| Dimensions | W: 450 mm H: 640 mm D: 185 mm |
QuADRO Technology engineers will handle the design, selection of compatible equipment and installation of systems based on Esser by Honeywell equipment.
