On request

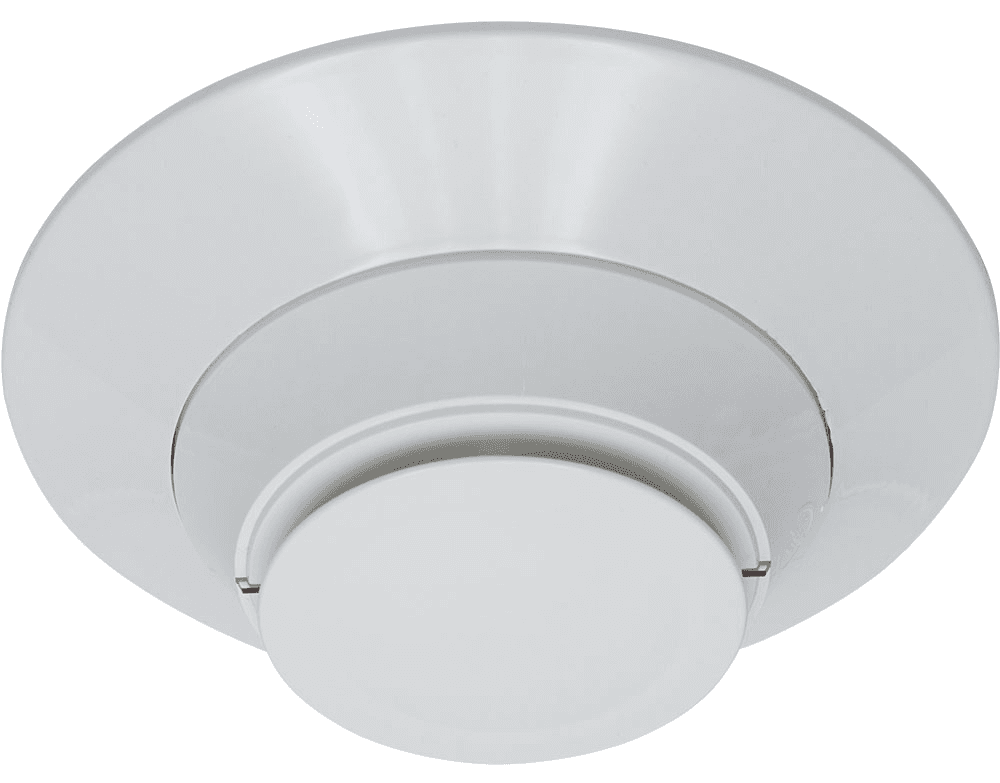

Self-Test Smoke / Heat Detector. Photoelectric + fixed-temperature 57 °C. Compatible with: NOTIFIER INSPIRE N16. Automatic smoke/heat maintenance testing, up to 150 tests.
| Type | Self-Test Smoke / Heat Detector |
| Operating Voltage | 15–32 V DC |
| Humidity | 10–93%, non-condensing |
| Color | White |
| Weight | 95 g |
| Quiescent Current | 200 µA @ 24 V DC |
| Current | 4.5 mA maximum |
| Protocol | FlashScan |
| Base | B300-6 / B501-WHITE |
| Dimensions | Height 51 mm; diameter depends on base |
| Temperature Range | 0…47 °C |
| Sensors | Photoelectric + fixed-temperature 57 °C |
| Compatibility | NOTIFIER INSPIRE N16 |
| Features | Automatic smoke/heat maintenance testing, up to 150 tests |
QuADRO Technology engineers will handle the design, selection of compatible equipment and installation of systems based on Notifier by Honeywell equipment.
